Arctic Steel Stainless Water Strainer WS-AC 70ASWSACC

Discontinued Arctic Steel Stainless Water Strainer WS-AC  70ASWSACC

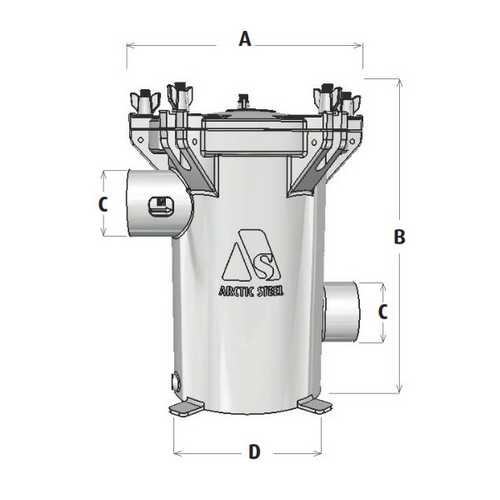

Thread Size - 1.25" NPT C
Solid 316 Stainless Lid
Lid Width  - 7.80" A
Overall Height  - 10.59" B
Body Width - 5.24" D
Weight - 13.67 lb
Flow Rate @ 0.015psi - 3.9 gpm
Flow Rate @ 14.5 psi - 14.6 gpm

  • Electro-polished AISI duplex Cast Stainless Steel
  • BSP or NPT thread available
  • Secured by 5 x 316 wing nuts for easy access
  • Swing down 316 eye bolts eliminates need to remove nuts
  • Solid electro-polished 316 stainless steel lid
  • Rugged ABS basket. High impact resistance. Stainless basket available for finer screening
  • Durable silicone gasket
  • Cast anode connection point for electrolysis resistance
  • Designed for applications that require a header tank or mounting above the waterline (aircond/genset)



  • Product Code: 70ASWSACC
  • Availability: Discontinued
  • $0.00
