Buck Algonquin Couplings

Buck Algonquin Couplings

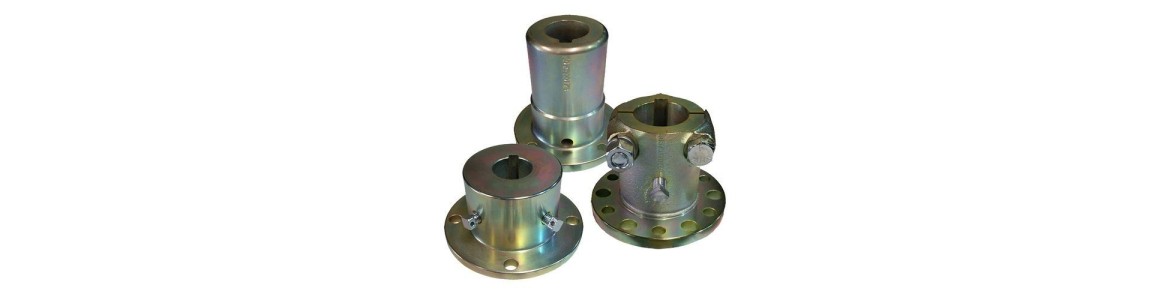

General Propeller stocks the full line of Buck Algonquin manufactured solid, split, tapered and reverse tapered bore shaft transmission couplers for most marine transmissions. The couplers are cast from ductile iron and machined to SAE J755 specifications.  We also stock couplings from other manufacturers in order to match your requirements.  Please contact us for assistance, we will be happy to help.

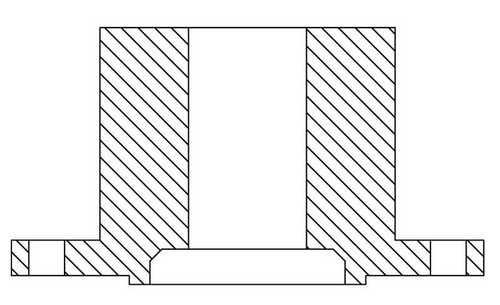

Solid
Coupling

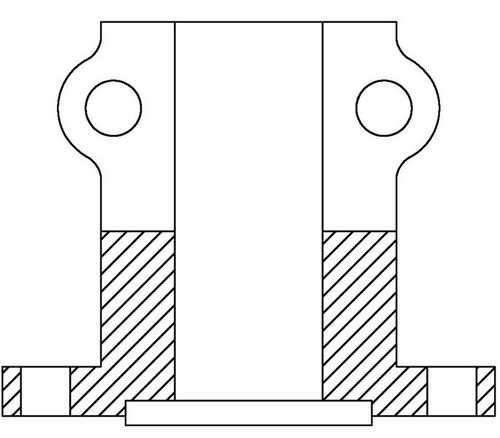

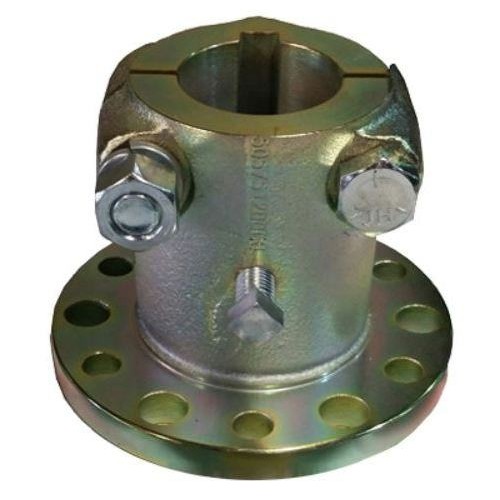

Split
Coupling

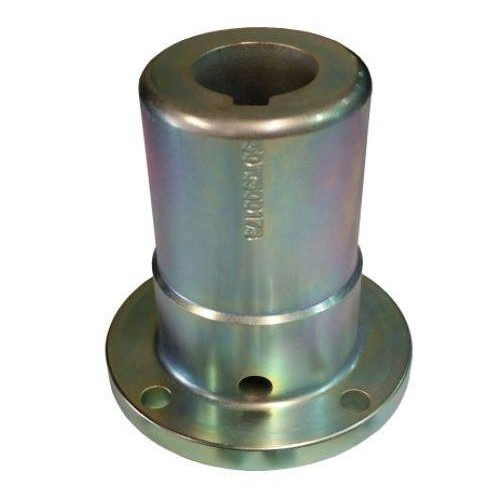

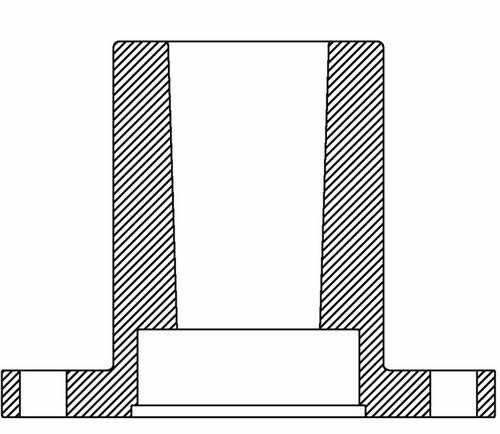

Standard
Taper
Reverse
Taper


Buck Coupling Reference Information

Show:
Sort By:
Reverse Taper Coupling - Flange 5" | Bore 1.25" | M-Pilot Dia 2.50" | 4 Bolt - .4375" Dia | Bolt Cir 4.25" | Overall 2.75"..
$106.13 $74.29
Solid Hub Coupling - Flange 3.410" | Bore 0.75" | F-Pilot Dia 1.876" | 3 Bolt - .375" Dia | Bolt Cir 2.75" | Overall 2.437"..
$100.10 $70.07
Split Hub Coupling - Flange 4" | Bore 1.00" | M-Pilot Dia 2" | 4 Bolt - .375" Dia | Bolt Cir 3.25" | Overall 3.4375"..
$124.00 $86.80
Taper Coupling - Flange 4.75" | Bore 1.375" | F-Pilot Dia 2.50" | 6 Bolt - .4375" Dia | Bolt Cir 3.875" | Overall 4.1875"..
$0.00
Reverse Taper Coupling - Flange 5" | Bore 1.375" | M-Pilot Dia 2.50" | 4 Bolt - .4375" Dia | Bolt Cir 4.25" | Overall 2.75"..
$106.13 $74.29
Solid Hub Coupling - Flange 3.410" | Bore 0.875" | F-Pilot Dia 1.876" | 3 Bolt - .375" Dia | Bolt Cir 2.75" | Overall 2.437"..
$100.10 $70.07
Split Hub Coupling - Flange 4" | Bore 1.125" | M-Pilot Dia 2" | 4 Bolt - .375" Dia | Bolt Cir 3.25" | Overall 3.4375"..
$124.00 $86.80
Taper Coupling - Flange 4.75" | Bore 1.5" | F-Pilot Dia 2.50" | 6 Bolt - .4375" Dia | Bolt Cir 3.875" | Overall 4.1875"..
$0.00
Reverse Taper Coupling - Flange 5" | Bore 1.5" | M-Pilot Dia 2.50" | 4 Bolt - .4375" Dia | Bolt Cir 4.25" | Overall 2.75"..
$106.13 $74.29
Solid Hub Coupling - Flange 3.410" | Bore 1.00" | F-Pilot Dia 1.876" | 3 Bolt - .375" Dia | Bolt Cir 2.75" | Overall 2.437"..
$100.10 $70.07
Split Hub Coupling - Flange 4" | Bore 1.25" | M-Pilot Dia 2" | 4 Bolt - .375" Dia | Bolt Cir 3.25" | Overall 3.4375"..
$120.39 $84.27
Taper Coupling - Flange 4.75" | Bore 1.75" | F-Pilot Dia 2.50" | 6 Bolt - .4375" Dia | Bolt Cir 3.875" | Overall 4.1875"..
$212.95 $149.07
Reverse Taper Coupling - Flange 5" | Bore 1.75" | M-Pilot Dia 2.50" | 4 Bolt - .4375" Dia | Bolt Cir 4.25" | Overall 2.75"..
$106.13 $74.29
Solid Hub Coupling - Flange 3.410" | Bore 1.125" | F-Pilot Dia 1.876" | 3 Bolt - .375" Dia | Bolt Cir 2.75" | Overall 2.437"..
$100.10 $70.07
Split Hub Coupling - Flange 4" | Bore 1.375" | M-Pilot Dia 2" | 4 Bolt - .375" Dia | Bolt Cir 3.25" | Overall 3.4375"..
$124.00 $86.80
