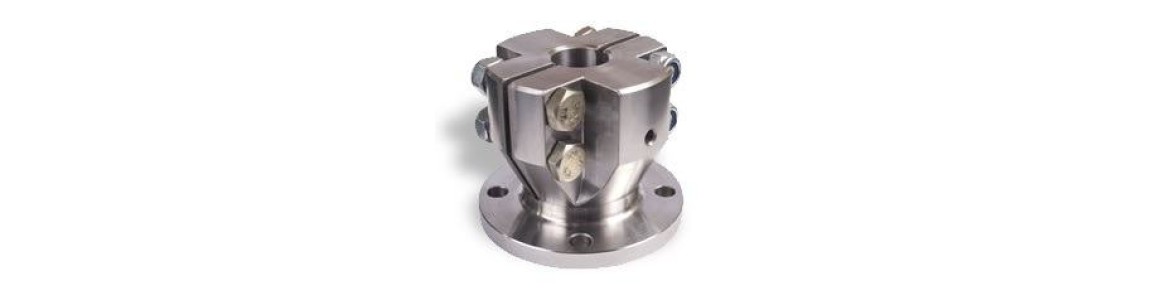

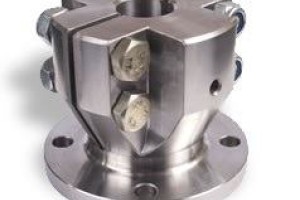

R & D Split Couplings


R&D Marine has developed a comprehensive range of competitively priced Steel Clamp Half Couplings with flange sizes from 4" to 7 1/4" diameter.
Steel Clamp Half Couplings can accommodate the variations that occur with normal shaft tolerances, are easy to install, and can be adjusted to the required position on the shaft.
Catalog

Display: List Grid
Sort By:
Show:
R&D Split Coupling 202-153

R&D Split Coupling 202-153

4" Borg Warner, PRM, Hurth  Split Hub Coupling - Flange(a) -  4", Bolt Circle(b) - 3.25", # of Holes(c) - 4, Bolt Size(d) - 3/8", Pilot Dia(e) - 2.50" Male, Length(f) - 3.19", Hub Dia.(g) - 3.38" Max Bore 1.50" or 40 mm .....
$215.00 $172.00
R&D Split Coupling 202-254

R&D Split Coupling 202-254

4" Yanmar Split Hub Coupling - Flange(a) -  4", Bolt Circle(b) - 3.07", # of Holes(c) - 4, Bolt Size(d) - 10mm, Pilot Dia(e) - 1.97" Male, Length(f) - 3.19", Hub Dia.(g) - 3.38" Max Bore 1.50" or 40 mm .....
$215.00 $172.00
R&D Split Coupling 202-255

R&D Split Coupling 202-255

4" Volvo Split Hub Coupling - Flange(a) -  4", Bolt Circle(b) - 3.15", # of Holes(c) - 4, Bolt Size(d) - 10mm, Pilot Dia(e) - 2.36" Female, Length(f) - 3.28", Hub Dia.(g) - 3.38" Max Bore 1.50" or 40 mm .....
$215.00 $172.00
R&D Split Coupling 202-168

R&D Split Coupling 202-168

5" Borg Warner, PRM, Hurth, Volvo  Split Hub Coupling - Flange(a) -  5", Bolt Circle(b) - 4.25", # of Holes(c) - 4, Bolt Size(d) - 7/16", Pilot Dia(e) - 2.50" Male, Length(f) - 3.75", Hub Dia.(g) - 4.06" Max Bore 2.00" or 50 mm .....
$328.00 $262.40
R&D Split Coupling 202-316

R&D Split Coupling 202-316

5" Yanmar  Split Hub Coupling - Flange(a) -  4.72", Bolt Circle(b) - 3.94", # of Holes(c) - 4, Bolt Size(d) - 10mm, Pilot Dia(e) - 2.56" Male, Length(f) - 3.75", Hub Dia.(g) - 4.06" Max Bore 2.00" or 50 mm .....
$328.00 $262.40
R&D Split Coupling 202-313

R&D Split Coupling 202-313

4.75" Flange ZF, IRM 220, MG502 Split Hub Coupling - Flange(a) -  5.00", Bolt Circle(b) - 3.88", # of Holes(c) - 6, Bolt Size(d) - 12mm, Pilot Dia(e) - 2.50" Female, Length(f) - 5.63", Hub Dia.(g) - 4.06" Max Bore 2.00" or 50 mm .....
$460.00 $368.00
R&D Split Coupling 202-176

R&D Split Coupling 202-176

5.75" Flange PRM Split Hub Coupling - Flange(a) -  5.75", Bolt Circle(b) - 4.75", # of Holes(c) - 6, Bolt Size(d) - 1/2", Pilot Dia(e) - 3.00" Male, Length(f) - 5.50", Hub Dia.(g) - 5.38" Max Bore 2.50" or 60 mm .....
$460.00 $368.00
R&D Split Coupling 202-188

R&D Split Coupling 202-188

5.75" Flange ZF, Twin Disc Split Hub Coupling - Flange(a) -  5.75", Bolt Circle(b) - 4.75", # of Holes(c) - 6, Bolt Size(d) - 5/8",16mm, Pilot Dia(e) - 3.00" Male, Length(f) - 5.50", Hub Dia.(g) - 5.38" Max Bore 2.50" or 60 mm .....
$460.00 $368.00
