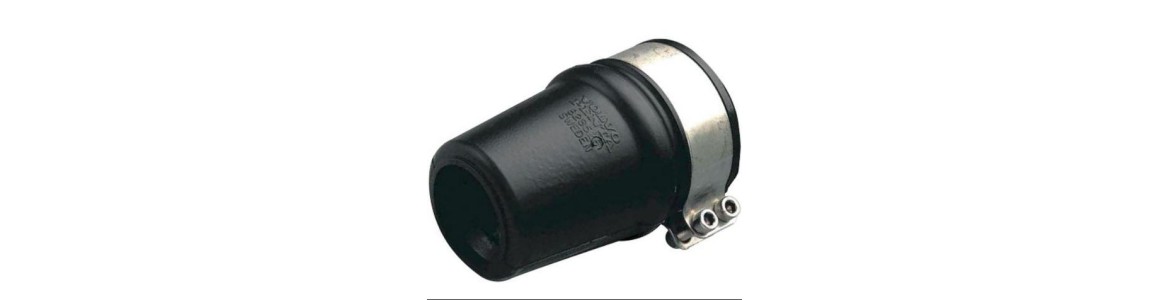

Volvo Penta Shaft Seal

Volvo Penta Shaft Seal
Part Number A, mm B, mm Shaft Dia. Shaft Tube Ext Dia.
828254 36 66 25mm 42mm
828422 36 72 30mm 48mm
828526 36 82 35mm 54mm
828527 36 82 40mm 60mm
3819722 36 92 45mm 64mm
3819723 36 92 50mm 70mm
3819724 36 66 1" 1-3/4"
3819725 36 75 1-1/4" 2"
3819726 36 82 1-1/2" 2-1/4"
3819727 36 92 1-3/4" 2-1/2"
3819728 36 92 2" 2-3/4"


Moulded rubber packing box for effective lubrication/sealing.  Simple, time saving installation and compact size.  Minimal maintenance work - grease every 200 hours or once a year.  The packing box is specifically dimensioned for Volvo Penta propeller shafts and tubes.  For effective lubrication it is essential that the packing box bearings are water-lubricated at all speeds.  Supplied complete with installation tools and grease.

Tube diameter tolerance +0.5,-0.3mm.  The distance between bearing points must not exceed 1500mm (59").

 Volvo Penta Shaft Seal Installation Instructions

Show:
Sort By:

Volvo Shaft Seal 25mm 828254

Volvo Shaft Seal 828254 Shaft Size 25mm Stern Tube Diameter 42mm ..

828254

$188.00 $156.04

Volvo Shaft Seal 30mm 828422

Volvo Shaft Seal 828422  Shaft 30mm Stern Tube Diameter 48mm ..

828422

$180.00 $149.40

Volvo Shaft Seal 35mm 828526

Volvo Shaft Seal 828526 Shaft 35mm Stern Tube Diameter 54mm ..

828526

$228.00 $189.24

Volvo Shaft Seal 40mm 828527

Volvo Shaft Seal 828527 Shaft 40mm Stern Tube Diameter 60mm ..

828527

$264.00 $219.12

Volvo Shaft Seal 45mm 3819722

Volvo Shaft Seal 3819722 Shaft 45mm Stern Tube Diameter 64mm ..

3819722

$256.00 $212.48

Volvo Shaft Seal 50mm 3819723

Volvo Shaft Seal 3819723 Shaft 50mm Stern Tube Diameter 70mm ..

3819723

$274.00 $227.42

Volvo Shaft Seal 1.00" 3819724

Volvo Shaft Seal 3819724 Shaft 1.00" Stern Tube Diameter 1.75" ..

3819724

$173.00 $143.59

Volvo Shaft Seal Grease 828250

Volvo Propeller Shaft Seal Grease 828250 Water Resistant 25g Tube   ..

828250

$9.90 $8.22

Volvo Shaft Seal 1.25" 3819725

Volvo Shaft Seal 3819725 Shaft 1.25" Stern Tube Diameter 2.00" ..

3819725

$179.00 $148.57

Volvo Shaft Seal 1.50" 3819726

Volvo Shaft Seal 3819726 Shaft 1.50" Stern Tube Diameter 2.25" ..

3819726

$219.00 $181.77

Volvo Shaft Seal 1.75" 3819727

Volvo Shaft Seal 3819727 Shaft 1.75" Stern Tube Diameter 2.50" ..

3819727

$256.00 $212.48

Volvo Shaft Seal 2.00" 3819728

Volvo Shaft Seal 3819728 Shaft 2.00" Stern Tube Diameter 2.75" ..

3819728

$274.00 $227.42
