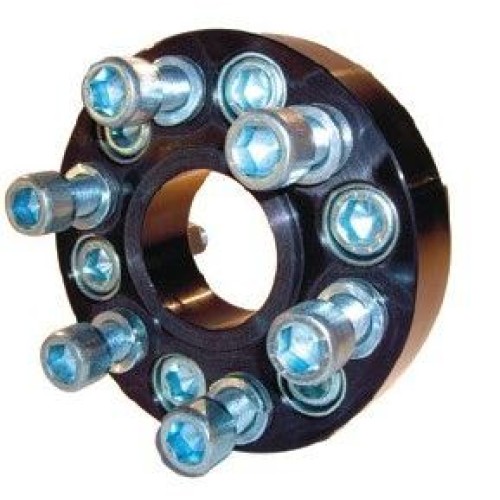

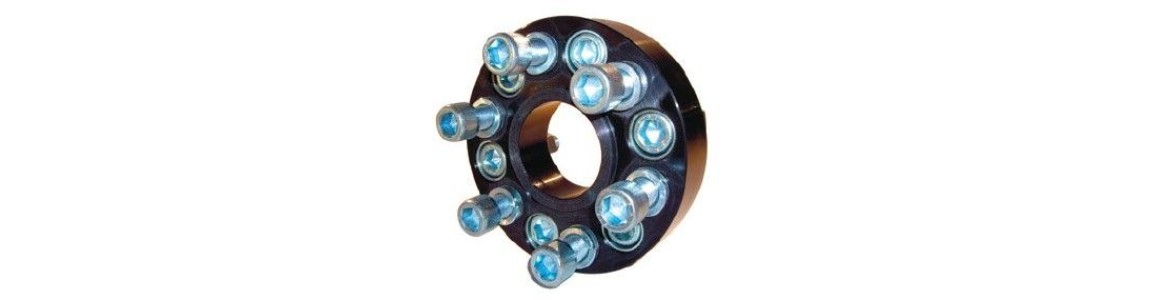

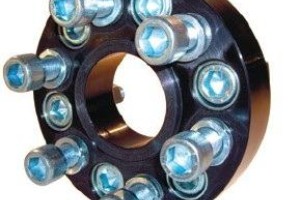

IsoFlex flexible couplings provide a sacrificial link that is designed to fail before any gearbox damage occurs. IsoFlex couplings assist engine mounts to do their job by allowing controlled engine movement to isolate vibration and helping to compensate for thrust-induced drive line misalignment. They are designed to cover a large percentage of Twin Disc and ZF gearboxes, plus many other boxes on the market.
Please contact us for additional information or unlisted items
Catalog
Brand: IsoFlex
Model: IC-4300-95
4" Borg Warner, Hurth, ZF, Newage
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
4.00"
Diameter
4.92"
No. of Bolts
4
Length
0.98"
Bolt Hole Diameter
0.375"
Bolt Diameter
0.375
Bolt Circle Diameter
3.25..
$382.00 $449.41
Brand: IsoFlex
Model: IC-4200-90
4" Yanmar
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
4.00"
Diameter
4.92"
No. of Bolts
4
Length
0.98"
Bolt Hole Diameter
10mm
Bolt Diameter
10mm
Bolt Circle Diameter
3.07"
Torque Rating - Heavy D..
$394.32 $463.91
Brand: IsoFlex
Model: IC-4600-95
4" Volvo
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
4.00"
Diameter
4.92"
No. of Bolts
4
Length
0.98"
Bolt Hole Diameter
10mm
Bolt Diameter
10mm
Bolt Circle Diameter
3.15"
Torque Rating - Heavy Du..
$382.00 $449.41
Brand: IsoFlex
Model: IC-4400-95
4.75" Yanmar
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
4.75"
Diameter
5.71"
No. of Bolts
4
Length
0.98"
Bolt Hole Diameter
10mm
Bolt Diameter
10mm
Bolt Circle Diameter
3.94"
Torque Rating - Heav..
$443.45 $521.70
Brand: IsoFlex
Model: IC-4500-95
5" Borg Warner, Hurth, ZF, Newage
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
5.00"
Diameter
5.91"
No. of Bolts
4
Length
1.13"
Bolt Hole Diameter
0.4375"
Bolt Diameter
0.4375
Bolt Circle Diameter
4...
$435.54 $512.40
Brand: IsoFlex
Model: IC-4500-HT
5" Borg Warner, Hurth, ZF, Newage High Torque
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
5.00"
Diameter
5.91"
No. of Bolts
4
Length
1.13"
Bolt Hole Diameter
0.4375"
Bolt Diameter
0.4375
Bolt Circle ..
$473.54 $557.10
Brand: IsoFlex
Model: IC-4550-95
5" Borg Warner, Hurth, ZF, Newage Chamfered Outer Diameter to ease installation
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
5.00"
Diameter - Chamfered
5.91"
No. of Bolts
4
Length
1.13"
Bolt Hole Diameter
0.4375"
..
$435.54 $512.40
Brand: IsoFlex
Model: IC-4550-HT
High Torque
5" Borg Warner, Hurth, ZF, Newage Chamfered Outer Diameter to ease installation
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
5.00"
Diameter - Chamfered
5.91"
No. of Bolts
4
Length
1.13"
Bolt Hole Diamet..
$473.54 $557.10
Brand: IsoFlex
Model: IC-6000-95
4.75" Capital, Twin Disc & ZF Outside Diameter is chamfered to ease installation
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
4.75"
Diameter - Chamfered
5.91"
No. of Bolts
6
Length
1.25"
Bolt Hole Diameter
0.4375"
..
$544.87 $641.02
Brand: IsoFlex
Model: IC-6000-HT
High Torque
4.75" Capital, Twin Disc & ZF Outside Diameter is chamfered to ease installation
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
4.75"
Diameter - Chamfered
5.91"
No. of Bolts
6
Length
1.25"
Bolt Hole Diameter..
$600.96 $707.01
Brand: IsoFlex
Model: IC-6100-95
5.75" Borg Warner, Hurth,Capital, Twin Disc & ZF
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
5.75"
Diameter - Chamfered
6.30"
No. of Bolts
6
Length
1.50"
Bolt Hole Diameter
0.50"
Bolt Diameter
0.50"
..
$554.42 $652.26
Brand: IsoFlex
Model: IC-6150-95
5.75" Borg Warner, Hurth,Capital, Twin Disc & ZF
Gear Box Flange Dimensions
Flexible Coupling Details
Diameter
5.75"
Diameter - Chamfered
6.30"
No. of Bolts
6
Length
1.50"
Bolt Hole Diameter
5/8" (16mm)
Bolt Diameter
16mm
..
$623.95 $734.06
Showing 1 to 12 of 12 (1 Pages)
