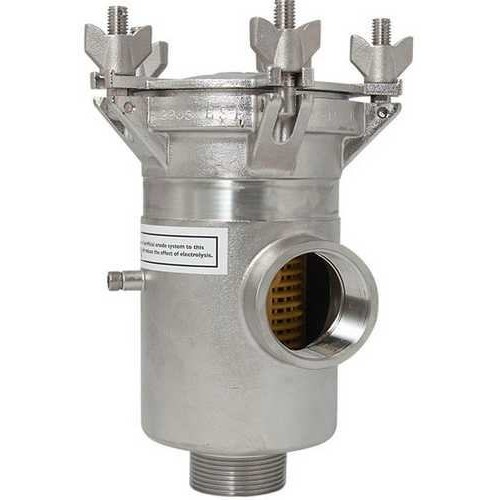

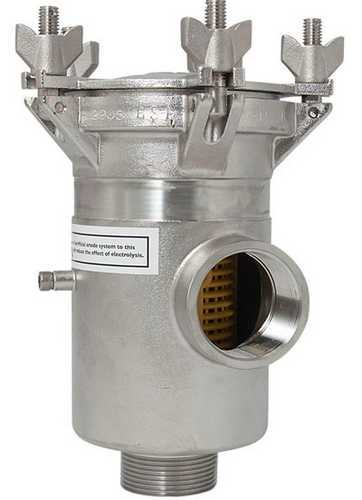

Arctic Steel Stainless Water Strainer WS-1.0 70WS-BISO-100-S

Arctic Steel Stainless Water Strainer WS-1.0  70WS-BISO-100-S

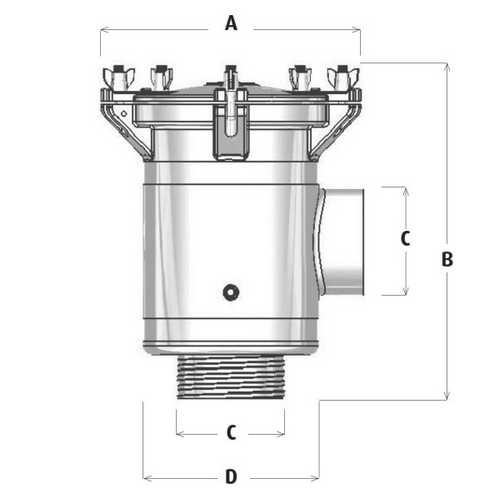

Thread Size - 1" NPT C
Solid 316 Stainless Lid
Lid Width  - 5.55" A
Overall Height  - 8.35" B
Body Width - 3.75" D
Weight - 7.72 lb
Flow Rate @ 0.015psi - 3.6 gpm
Flow Rate @ 14.5 psi - 11.4 gpm

  • Electro-polished AISI duplex Cast Stainless Steel
  • BSP or NPT thread available
  • Secured by 5 x 316 wing nuts for easy access
  • Swing down 316 eye bolts eliminates need to remove nuts
  • Solid electro-polished 316 stainless steel lid
  • Rugged ABS basket. High impact resistance. Stainless basket available for finer screening
  • Durable silicone gasket
  • Cast anode connection point for electrolysis resistance
  • Side mounting bracket available (316 S/S)
  • Adjustable bracket extension arm also available (316 S/S)

  • Product Code: 70WS-BISO-100-S
  • Availability: In Stock
  • $349.43
  • $244.60
