Tides seriesOne Kits

Tides seriesOne Kits

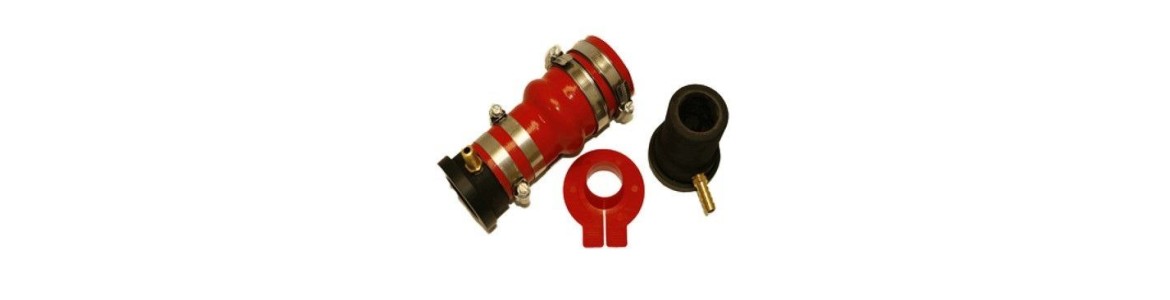

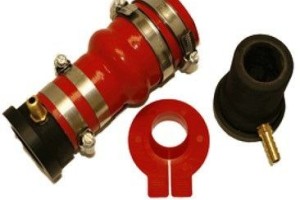

The seriesOne shaft seal was designed for smaller single-engine vessels with stainless steel propeller shafts. This shaft seals fits shaft diameters from 7/8″ through 1 1/4″ in 1/8″ increments. It can also be used on metric stainless shafting from 25mm through 30mm.
The seriesOne shaft seal is covered by a one year warranty.
Tides Marine suggests that all twin-engine applications use the Tides SureSeal.
Housing
The seriesOne housing is produced in the same manner as the SureSeal shaft seals. However, in order to produce a shaft seal for our more cost-conscious customers, the front cap design of the seriesOne has been modified.
As a result, the lip seal in the seriesOne is NOT replaceable.
When the lip seal in the seriesOne is worn to the point of leaking, the entire shaft seal must be replaced.
Bearing
The seriesOne bearing is machined from PTFE to precise tolerances.
Hose
The seriesOne shaft seal is available with two hose options. For vessels like ski boats with shorter shafts (approximately 3′ in length), higher operating RPMs (3500 RPM+) and more rigid engine mounts, a single-convolution articulating hose is recommended.
For vessels powered by smaller diesel engines (1-3 cylinders) using softer engine mounts, the multi-convolution articulating hose is recommended. This extra flexibility compensates for increased lateral engine movement during operation.
Hose Clamps
Four 316 Stainless Steel clamps are provided with each seriesOne shaft seal.

Show:
Sort By:

Tides seriesOne Kit ONE 0875 S

Tides Marine  - seriesOne Kit  Single-Convolution Hose Kit includes (seriesOne Housing, Ho..

ONE 0875 S

$222.29 $177.83

Tides seriesOne Kit ONE 0875 M

Tides Marine  - seriesOne Kit  Multi-Convolution Hose Kit includes (seriesOne Housing, Hos..

ONE 0875 M

$222.29 $177.83

Tides seriesOne Kit ONE 1000 S

Tides Marine  - seriesOne Kit  Single-Convolution Hose Kit includes (seriesOne Housing, Ho..

ONE 1000 S

$222.29 $177.83

Tides seriesOne Kit ONE 1000 M

Tides Marine  - seriesOne Kit  Multi-Convolution Hose Kit includes (seriesOne Housing, Hos..

ONE 1000 M

$222.29 $177.83

Tides seriesOne Kit ONE 1125 S

Tides Marine  - seriesOne Kit  Single-Convolution Hose Kit includes (seriesOne Housing, Ho..

ONE 1125 S

$222.29 $177.83

Tides seriesOne Kit ONE 1125 M

Tides Marine  - seriesOne Kit  Multi-Convolution Hose Kit includes (seriesOne Housing, Hos..

ONE 1125 M

$222.29 $177.83

Tides seriesOne Kit ONE 1250 S

Tides Marine  - seriesOne Kit  Single-Convolution Hose Kit includes (seriesOne Housing, Ho..

ONE 1250 S

$222.29 $177.83

Tides seriesOne Kit ONE 1250 M

Tides Marine  - seriesOne Kit  Multi-Convolution Hose Kit includes (seriesOne Housing, Hos..

ONE 1250 M

$222.29 $177.83

Tides seriesOne Kit ONE 25M-S

Tides Marine  - seriesOne Kit  Single-Convolution Hose Kit includes (seriesOne Housing, Ho..

ONE 25M S

$222.29 $177.83

Tides seriesOne Kit ONE 25M-M

Tides Marine  - seriesOne Kit  Multi-Convolution Hose Kit includes (seriesOne Housing, Hos..

ONE 25M M

$222.29 $177.83

Tides seriesOne Kit ONE 30M S

Tides Marine  - seriesOne Kit  Single-Convolution Hose Kit includes (seriesOne Housing, Ho..

ONE 30M S

$222.29 $177.83

Tides seriesOne Kit ONE 30M

Tides Marine  - seriesOne Kit  Multi-Convolution Hose Kit includes (seriesOne Housing, Hos..

ONE 30M M

$222.29 $177.83
